Spesifikasi:

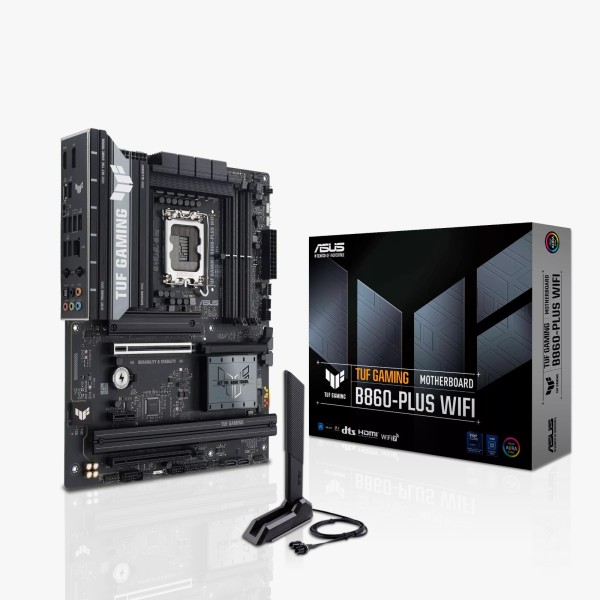

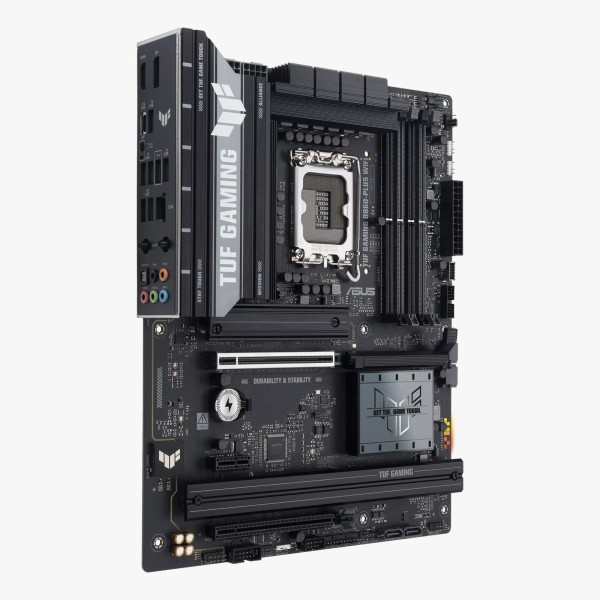

Model: TUF GAMING B860-PLUS WIFI
CPU:
Support Intel® Core™ Ultra Processors(Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset: Intel® B860 Chipset
Memory:
4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Graphics:
1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
Storage:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet:
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 11 (22H2 & later)
Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
