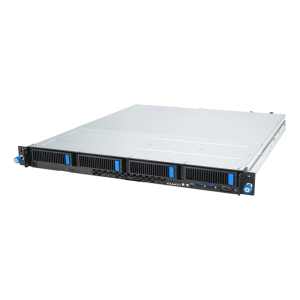

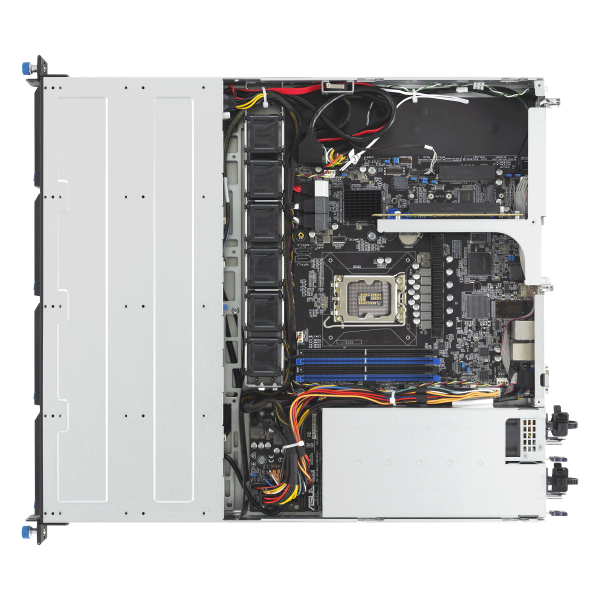

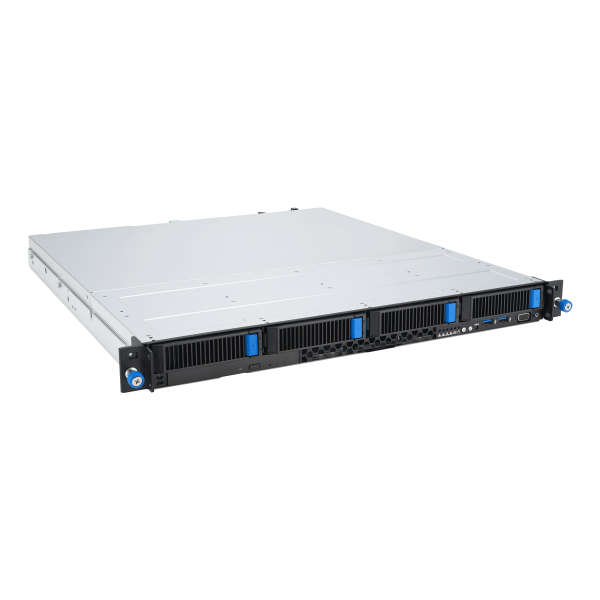

Asus RS300-E12-RS4 1U Rack Server System Intel Xeon E-2400 Series

Spesification:

Processor / System Bus:
1 x Socket LGA1700
Intel® Xeon® processor E-2400 family
Intel® Xeon® 6300 series processor
Intel® Pentium™ processors
*Refer to support page for more information

Generation: E12

Core Logic: Intel® C262 Chipset

Memory:
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR5 4400/4000/3600 UDIMM
Memory Size :
32GB, 16GB, 8GB UDIMM
* Refer to support page for more information

Expansion Slots:
Total PCI-E Slots: 3
1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
(optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)

Storage:
Storage Controller :
Intel® C262 Chipset
8 x SATA3 6Gb/s ports
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

HDD Bays:
4 x 3.5” Hot-Swap HDD Bays
-up to (4*SATA/SAS/NVMe)
*SAS support only from optional SAS HBA/RAID card
*NVMe support only from optional NVMe upgrade kit

Auxiliary Storage FDD/CD/DVD:
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD-ROM

Networking: 2 x Intel® I210AT + 1 x Mgmt LAN

Graphic: Aspeed AST2600 with 64MB VRAM

Front I/O Ports:
1 x VGA port
2 x USB 3.2 Gen1 ports

Rear I/O Ports:
3 x USB 3.2 Gen 2 ports
1 x VGA port
1 x COM port
1 x RJ-45 ports

Switch/LED:
Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED

Management Solution:
ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet

Regulatory Compliance: BSMI, CE, CB, FCC(Class A)

Dimensions: 497mm x 439.5mm x 44mm

Form Factor: 1U

Weight: 15.2kg

Power Supply: 1+1 Redundant 450W 80 PLUS PLATINUM Power Supply

Environment:
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
