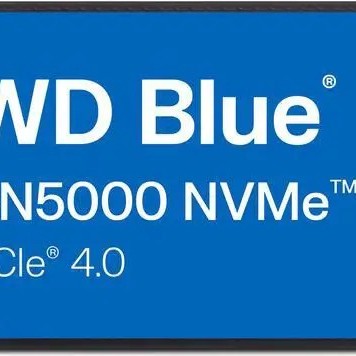

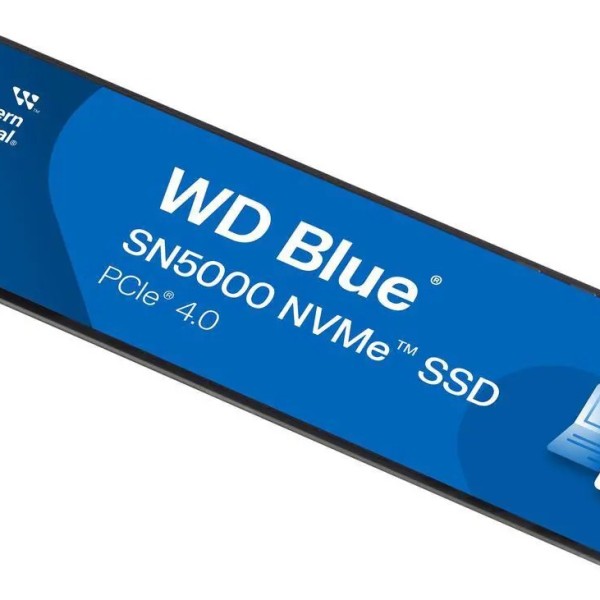

WD 1TB WD BLUE SN5000 NVME SSD, PCIE GEN 4.0, UP TO 5,150 MB/S READ SPEEDS INTERNAL SOLID STATE DRIV
WD 1TB WD BLUE SN5000 NVME SSD, PCIE GEN 4.0, UP TO 5,150 MB/S READ SPEEDS INTERNAL SOLID STATE DRIV
Spesification:
- Capacity: 1TB
Model Number: WDS100T4B0E - Form Factor: M.2 2280
Interface: PCIe® Gen4 16GT/s, up to 4 Lanes - NAND Type: Western Digital® 3D NAND TLC
- Performance:
Sequential Read (MB/s) up to (Queues = 32, Threads = 1) 5,000 5,150 5,150 5,500
Sequential Write (MB/s) up to (Queues = 32, Threads = 1) 4,000 4,900 4,850 5,000
Random Read 4KB IOPS up to (Queues=32, Threads=16) 460K 730K 650K 690K
Random Write 4KB IOPS up to (Queues=32, Threads=16) 770K 770K 770K 900K - Power:
Average Active Power 75mW
Sleep (PS5) 5mW
Max Average power 6.3W - Reliability:
Endurance (TBW)5 300 600 900 1,200
MTTF: 6 1.75 Million hours
Limited Warranty: 5 years - Environmental:
Operating Temperatures8 32°F to 185°F (0°C to 85°C)
Non-operating Temperatures9 -40°F to 185°F (-40°C to 85°C)
Operating Vibration 5.0 gRMS, 10–2000 Hz, 3 axes
Non-Operating Vibration 4.9 gRMS, 7–800 Hz, 3 axes
Shock 1,500G @ 0.5 ms half sine
Certifications BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI
RoHS Compliance7 Yes - Physical Dimensions:
Length 80 ± 0.15mm
Width 22 ± 0.15mm
Height 2.38mm
Weight 5.7g ± 0.5g
