Specifications:

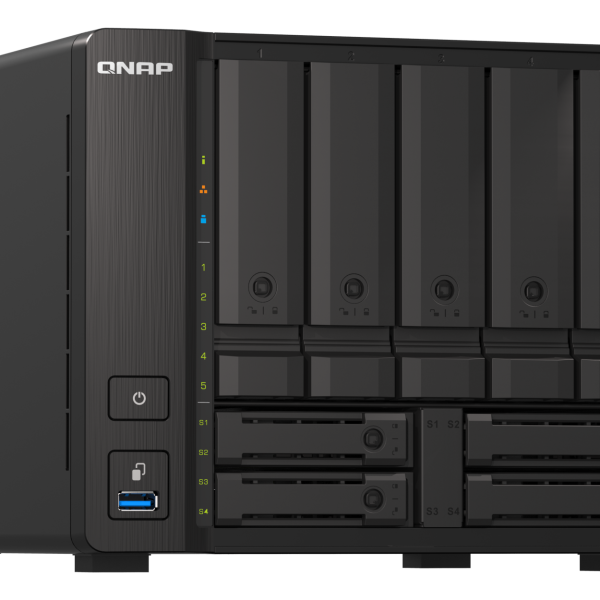

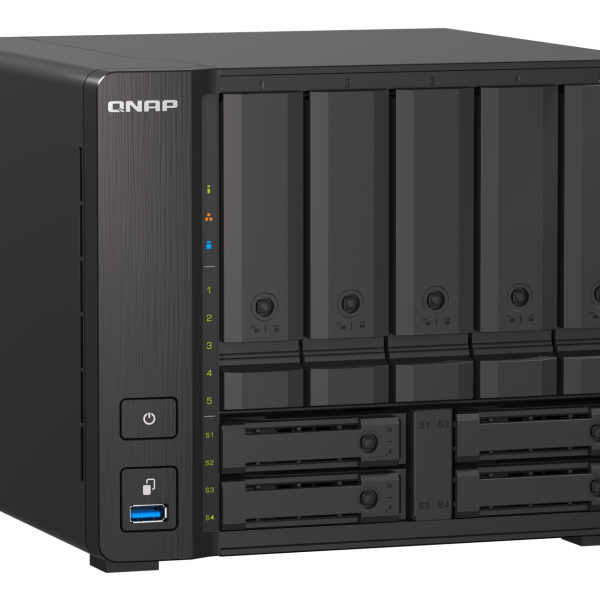

Model: TS-h973AX-8G
CPU: AMD RyzenTM Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture: 64-bit x86
Floating Point Unit: Yes
Encryption Engine: Yes (AES-NI)
System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory: 64 GB (2 x 32 GB)
Memory Slot: 2 x SODIMM DDR4 Support optional ECC memory
Flash Memory: 5GB (Dual boot OS protection)
Drive Bays: 5 x 3.5-inch + 4 x 2.5-inch
Drive Compatibility:
3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
2.5-inch bays: 2.5-inch SATA solid state drives, 2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives
SSD Cache Acceleration Support: Yes
Ethernet Ports: 2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M), 1 x 5 Gigabit Ethernet Port
(5G/2.5G/1G/100M), Optional 10 Gigabit Ethernet Port via QNA-UC5G1T adapter
USB Ports: 1 x Type-C USB 3.2 Gen 2, 3 x Type-A USB 3.2 Gen 2
Form Factor: Tower
LED Indicators: HDD 1-5, SSD 1-4, Power/Status, LAN, USB
Buttons: Power, Reset, USB Copy
Dimensions (HxWxD): Dimensions do not include a footpad (footpad may be up to 30mm / 1.18 inches
high depending on model)
Weight (Net): 9.57 lbs
Weight (Gross): 11.2 lbs
Operating Temperature:
Storage Temperature:
Relative Humidity:
Power Supply Unit: External, 120 W, AC 100 to 240 V
Fan: 1 x 140mm, 12VDC
Kensington Security Slot: Yes
Standard Warranty: 3 years
Max. Number of Concurrent Connections (CIFS) – with
Max. Memory: 2000
