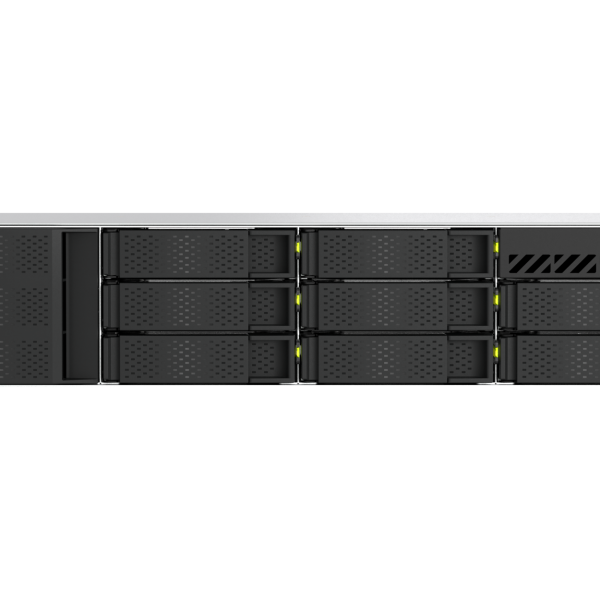

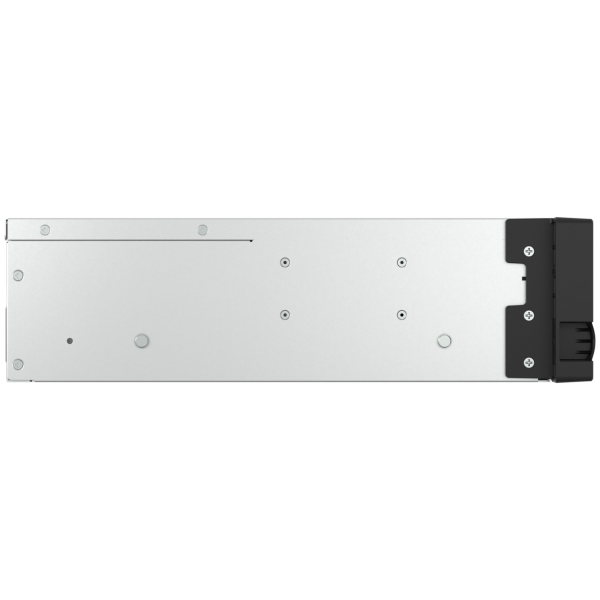

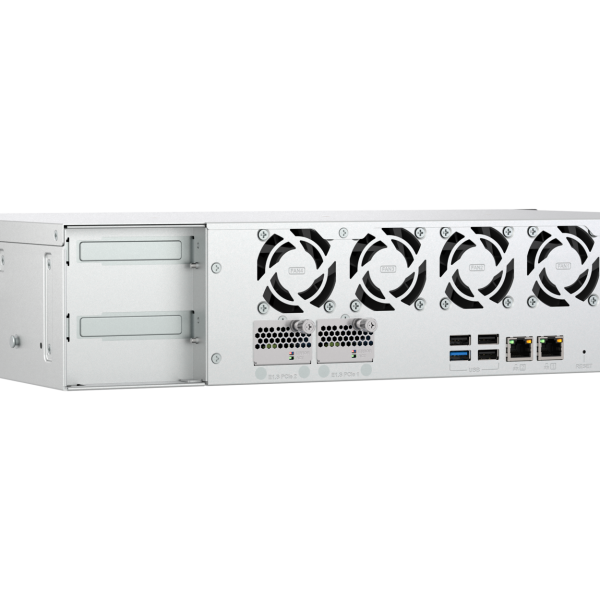

QNAP TS-H1065EU-8G NAS INTEL 4-CORE PROCESSOR/8 GB SODIMM DDR5

SKU:
TS-H1065EU-8G

Description:

Spesifikasi:

CPUIntel 4-core processor
CPU Architecture64-bit x86
Floating Point UnitYes
Encrypt... Read More »

Spesifikasi:

CPUIntel 4-core processor
CPU Architecture64-bit x86
Floating Point UnitYes
Encryption EngineYes (AES-NI)
Hardware-accelerated TranscodingYes
System Memory8 GB SODIMM DDR5
Maximum Memory16 GB (1 x 16GB)
Memory Slot1 x SODIMM DDR5
Flash Memory4GB (Dual boot OS protection)
Drive BayFront: 8 x 3.5-inch
Rear:2 x E1.S/M.2 NVMe Gen3 x1 slots
Drive Compatibility3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

E1.S/M.2 slots:
E1.S NVMe SSD
M.2 NVMe SSD
Hot-swappableYes
M.2 SlotOptional via a PCIe adapter
SSD Cache Acceleration SupportYes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)Optional via network adaptor
10 Gigabit Ethernet Port

Optional via network adaptor

Optional via PCIe expansion card

Wake on LAN (WOL)Yes
Jumbo FrameYes
PCIe Slot

1 x PCIe Gen3 x2

Slot 1: PCIe Gen 3 x2

Card dimensions for PCIe slot 1：97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches.

USB 2.0 port3
USB 3.2 Gen 2 (10Gbps) Port1 x Type A USB 3.2 Gen 2
Form Factor2U Short Depth Rackmount
LED IndicatorsHDD 1-8, E1.S/M.2 1~2, Status, LAN, Expansion, Power
ButtonsPower, Reset
Dimensions (HxWxD)88.6 × 432 × 297.4 mm
Weight (Net)9.21 kg
Weight (Gross)10.71 kg
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit250W , 100-240V
Power Consumption: Disk Standby Mode31.742 W
Power Consumption: Operating Mode, Typical

55.83 W

Tested with drives fully populated.

Fan3 x 60mm, 12VDC
System WarningBuzzer
Standard Warranty3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory1500
« Read Less
