| Drive Bay | 4 x 3.5-inch The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays:
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. |
| Hot-swappable | Yes |
| Form Factor | 1U Short Depth Rackmount |

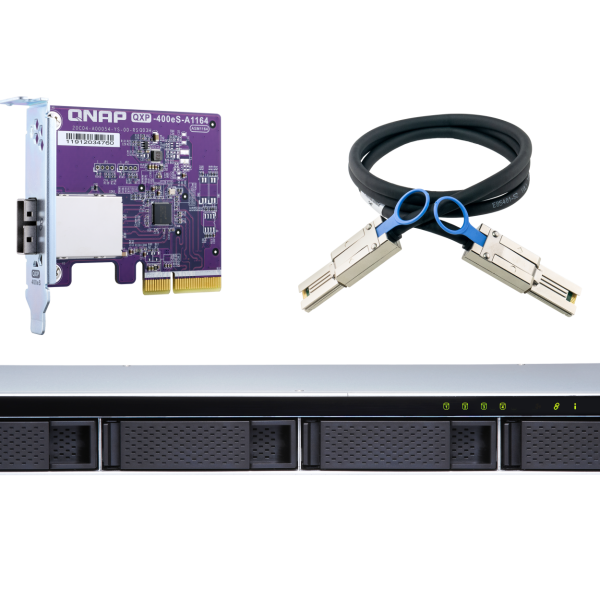

| Host Interface | 1 x SFF-8088 |
| LED Indicators | HDD 1-4, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 43.9 × 438.9 × 291.1 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 4.92 kg |
| Weight (Gross) | 5.77 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 100W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 25.07 W Tested fully populated with Seagate ST6000NM0024 hard drives. |
| Fan Mode Switch | Yes (Auto, high, medium, low) |
| Fan | 2 x 40mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| QTS / QuTS hero | Yes |
| Windows | Yes |
| Ubuntu | Yes |
| Standard Warranty | 3 |
