| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch The system is shipped without HDD.
For the HDD compatibility list, plea...
Read More »
Spesifikasi:| JBOD Connection Interface | SATA |
|---|
| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ | | Drive Compatibility | 3.5-inch bays:
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
2.5-inch bays:
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. | | Hot-swappable | Yes | | Form Factor | Tower | | Host Interface | 4 x SFF-8088 | | LED Indicators | HDD 1-16, Status, Link, Fan error | | LCD Display/ Button | ENTER: Reserved for future use. This button currently has no function on this model. | | Buttons | Power switch | | Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | | Weight (Net) | 13.49 kg | | Weight (Gross) | 14.87 kg | | Operating Temperature | 0 - 40 °C (32°F - 104°F) | | Storage Temperature | -20 - 70°C (-4°F - 158°F) | | Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | | Power Supply Unit | 250W PSU, 100 - 240V | | Power Consumption: Operating Mode, Typical | 93.66 W Tested with drives fully populated. | | Fan Mode Switch | Yes (Auto, high, medium, low) | | Fan | 3 x 92mm, 12VDC | | System Warning | Buzzer | | Kensington Security Slot | Yes | | QTS / QuTS hero | Yes | | Windows | Yes | | Ubuntu | Yes | | Standard Warranty | 2 |

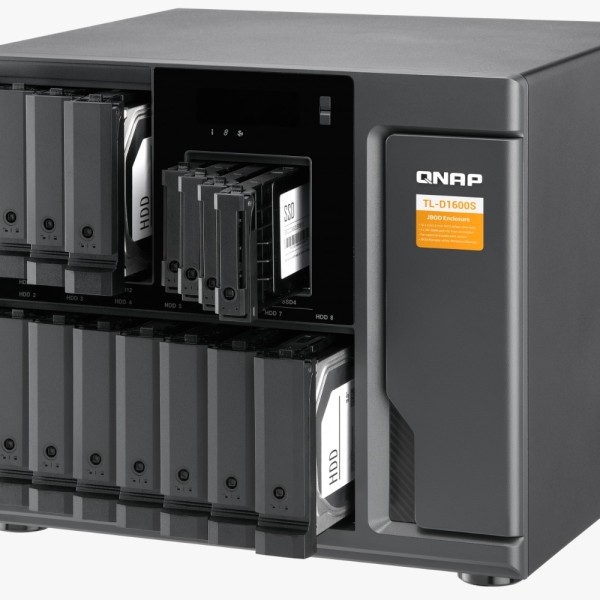

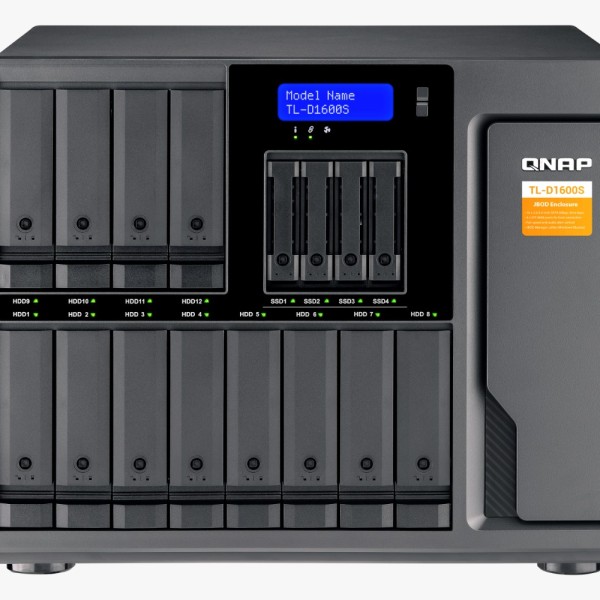

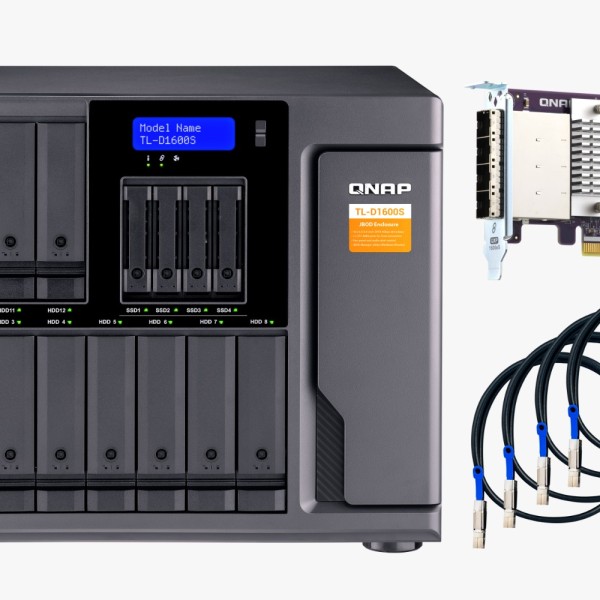

QNAP TL-D1600S BAY SATA-4 X SFF-8088
Spesifikasi:| JBOD Connection Interface | SATA |
|---|
| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ | | Drive Compatibility | 3.5-inch bays:
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
2.5-inch bays:
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. | | Hot-swappable | Yes | | Form Factor | Tower | | Host Interface | 4 x SFF-8088 | | LED Indicators | HDD 1-16, Status, Link, Fan error | | LCD Display/ Button | ENTER: Reserved for future use. This button currently has no function on this model. | | Buttons | Power switch | | Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | | Weight (Net) | 13.49 kg | | Weight (Gross) | 14.87 kg | | Operating Temperature | 0 - 40 °C (32°F - 104°F) | | Storage Temperature | -20 - 70°C (-4°F - 158°F) | | Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | | Power Supply Unit | 250W PSU, 100 - 240V | | Power Consumption: Operating Mode, Typical | 93.66 W Tested with drives fully populated. | | Fan Mode Switch | Yes (Auto, high, medium, low) | | Fan | 3 x 92mm, 12VDC | | System Warning | Buzzer | | Kensington Security Slot | Yes | | QTS / QuTS hero | Yes | | Windows | Yes | | Ubuntu | Yes | | Standard Warranty | 2 |
|
