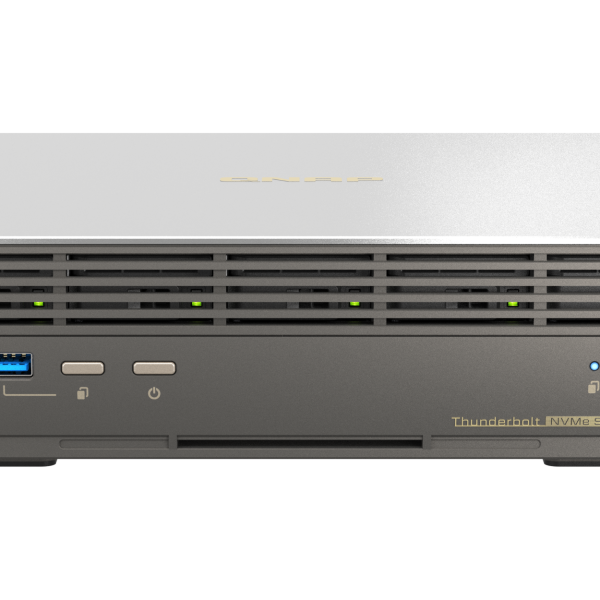

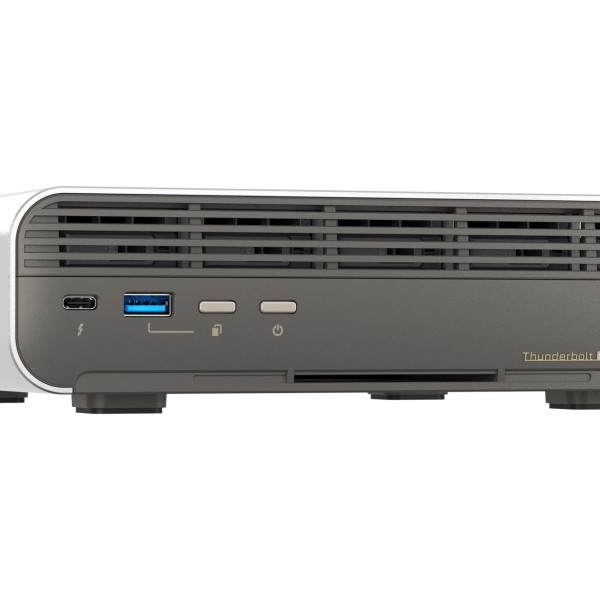

QNAP 5-BAY ALL-FLASH NASBOOK; INTEL CORE I5-1340PE 12C(4P+8E)/16T UP TO 4.50GHZ, ONBOARD 16GB RAM (N
SKU: TBS-H574TX-I5-16G
Description:
Spesifikasi:
CPU
Intel® Core™ i5-1235U, 10C (2P+8E)/12T, 4.4GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® Ir... Read More »
Spesifikasi:
CPU
Intel® Core™ i5-1235U, 10C (2P+8E)/12T, 4.4GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® Iris® Xe Graphics eligible
Floating Point Unit
Encryption Engine
Hardware-accelerated Transcoding
System Memory
16 GB on board (non-expandable)
Maximum Memory
16 GB on board (non-expandable)
Flash Memory
5GB (Dual boot OS protection)
Drive Bay
5 x E1.S up to 15mm (5x PCIe Gen3 x2)
Pre-install adapter to support M.2 2280 for each slots
Drive Compatibility
E1.S or M.2 2280 PCIe NVMe
Heatsinks of M.2 must not exceed a height of 4.5 mm
Hot-swappable
M.2 Slot
5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)
The system is shipped without SSD. For the SSD compatibility list, please visit https://www.qnap.com/compatibility/
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
1
10 Gigabit Ethernet Port
1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
Thunderbolt Port
2 (Thunderbolt™ 4)
Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
USB 2.0 port
1
USB 3.2 Gen 2 (10Gbps) Port
2
HDMI™ Output
1, HDMI™ 1.4b
Form Factor
Set-top design
LED Indicators
Status, USB copy, SSD 1-5
Buttons
Status, USB copy, Reset
Dimensions (HxWxD)
60 × 215 × 199 mm
Weight (Net)
2.24 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit
120W Adapter (19VDC output, 100-240VAC input)
Power Consumption: Operating Mode, Typical
46 W
Fan
System fan: 2 x 40mm
System Warning
Buzzer
Standard Warranty
3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
1500
« Read Less
