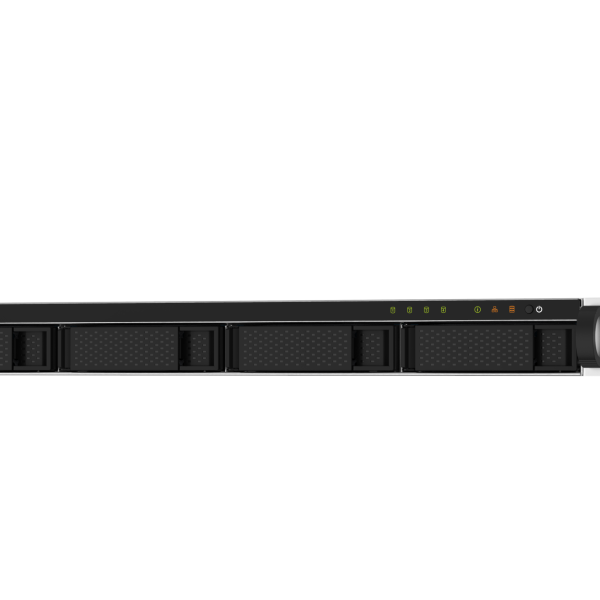

QNAP 4-BAY AL324 QUAD-CORE 1.7 GHZ RACKMOUNT NAS WITH 250W REDUNDANT PSU, 2GB DDR4 UDIMM RAM (MAX 16

SKU:
TS-432PXU-RP-2G

Description:

Spesifikasi:

CPUAnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
CPU Architecture64-bit ARM
Floating Point Unit... Read More »

Spesifikasi:

CPUAnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
CPU Architecture64-bit ARM
Floating Point Unit
Encryption Engine
System Memory2 GB UDIMM DDR4
Maximum Memory16 GB (1 x 16 GB)
Memory Slot1 x UDIMM DDR4
Flash Memory512 MB (Dual boot OS protection)
Drive Bay4 x 3.5" SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable(Not supported M.2 SSD)
M.2 SlotOptional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port2 x 10GbE SFP+
Wake on LAN (WOL)Only the 2.5GbE port
Jumbo Frame
PCIe Slot

1
Slot 1: PCIe Gen 2 x2

PCIe bandwidth limitations will restrict the NAS 10GbE performance.
Card dimensions for PCIe slot：210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches.

USB 3.2 Gen 1 port4
Form Factor1U Rackmount
LED IndicatorsHDD 1-4, Status, LAN, Storage expansion
ButtonsPower, Reset
Dimensions (HxWxD)

43.3 × 430 × 479 mm

Excludes ear hook and the protruding part of the Power Supply Unit.

Weight (Net)9.08 kg
Weight (Gross)11.03 kg
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit250W (x2) PSU, 100 - 240V
Power Consumption: Operating Mode, Typical

53.343 W

Tested with drives fully populated.

Fan2 x 40mm, 12VDC
System WarningBuzzer
Standard Warranty3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory700
« Read Less
