Spesifikasi: | CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|
| CPU Architecture | 64-bit x86 | | Graphic Processors | Intel® UHD Graphics | | Floating Point Unit | | | Encryption Engine | (AES-NI) | | Hardware-accelerated Transcoding | | | System Memory | 8 GB SODIMM DDR4 Since 2024/01 | | Maximum Memory | 16 GB (2 x 8GB) | | Flash Memory | 4GB (Dual boot OS protection) | | Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s | | Drive Compatibility | 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives | | Hot-swappable | (Not supported M.2 SSD) | | M.2 Slot | Optional via a PCIe adapter | | SSD Cache Acceleration Support | | | 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) | | 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card | | 10 Gigabit Ethernet Port | Optional via PCIe expansion card Optional via PCIe expansion card | | Wake on LAN (WOL) | | | Jumbo Frame | | | PCIe Slot | 1
Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot：160 x 68.9x 28.76 mm / 6.3 x 2.71 x 1.13 inches. | | USB 2.0 port | 2 | | USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen2 | | HDMI™ Output | 1, HDMI™ 1.4b | | Form Factor | 2U Rackmount | | LED Indicators | HDD 1-12, Status, LAN, Expansion, Power | | Buttons | Power, Reset | | Dimensions (HxWxD) | 88.6 × 432 × 370.7 mm | | Weight (Net) | 10.64 kg | | Weight (Gross) | 14.01 kg | | Operating Temperature | 0 - 40 °C (32°F - 104°F) | | Storage Temperature | -20 - 70°C (-4°F - 158°F) | | Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | | Power Supply Unit | 300W (x2), 100-240V | | Power Consumption: Disk Standby Mode | 37.854 W | | Power Consumption: Operating Mode, Typical | 70.913 W Tested with drives fully populated. | | Fan | 2 x 80mm, 12VDC | | System Warning | Buzzer | | Standard Warranty | 3 | | Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |

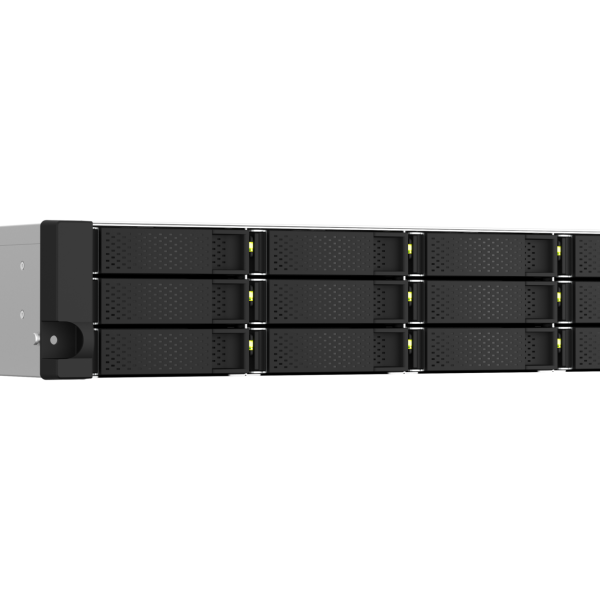

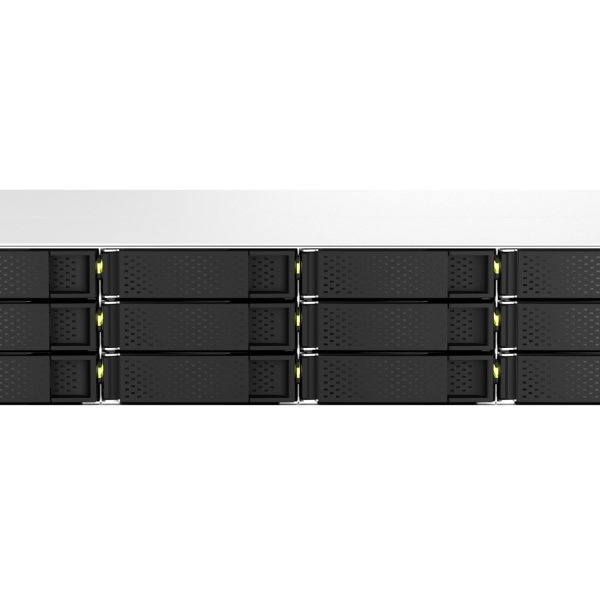

QNAP 2U 12-BAY RACKMOUNT NAS, INTEL CELERON N5095 QUAD-CORE, 8 GB ONBOARD NOT EXPANDABLE, 12 X 3.5"/
Spesifikasi: | CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|
| CPU Architecture | 64-bit x86 | | Graphic Processors | Intel® UHD Graphics | | Floating Point Unit | | | Encryption Engine | (AES-NI) | | Hardware-accelerated Transcoding | | | System Memory | 8 GB SODIMM DDR4 Since 2024/01 | | Maximum Memory | 16 GB (2 x 8GB) | | Flash Memory | 4GB (Dual boot OS protection) | | Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s | | Drive Compatibility | 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives | | Hot-swappable | (Not supported M.2 SSD) | | M.2 Slot | Optional via a PCIe adapter | | SSD Cache Acceleration Support | | | 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) | | 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card | | 10 Gigabit Ethernet Port | Optional via PCIe expansion card Optional via PCIe expansion card | | Wake on LAN (WOL) | | | Jumbo Frame | | | PCIe Slot | 1
Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot：160 x 68.9x 28.76 mm / 6.3 x 2.71 x 1.13 inches. | | USB 2.0 port | 2 | | USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen2 | | HDMI™ Output | 1, HDMI™ 1.4b | | Form Factor | 2U Rackmount | | LED Indicators | HDD 1-12, Status, LAN, Expansion, Power | | Buttons | Power, Reset | | Dimensions (HxWxD) | 88.6 × 432 × 370.7 mm | | Weight (Net) | 10.64 kg | | Weight (Gross) | 14.01 kg | | Operating Temperature | 0 - 40 °C (32°F - 104°F) | | Storage Temperature | -20 - 70°C (-4°F - 158°F) | | Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | | Power Supply Unit | 300W (x2), 100-240V | | Power Consumption: Disk Standby Mode | 37.854 W | | Power Consumption: Operating Mode, Typical | 70.913 W Tested with drives fully populated. | | Fan | 2 x 80mm, 12VDC | | System Warning | Buzzer | | Standard Warranty | 3 | | Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
|
