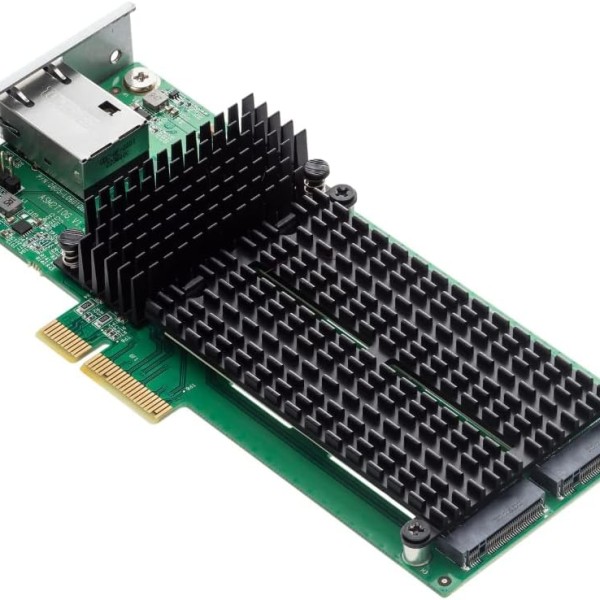

ASUSTOR AS-T10G3, 10GBE & M.2 NVME SSD NETWORK CARD

SKU:
AS-T10G3

Description:

AS-T10G3

10GbE and M.2 NVMe SSD Composite PCIe 3.0 Network Card Designed for Expansion and Performance Improvement

  • Uses the Marvell AQC113 10GbE controller
  • Supports two M.2 NVMe SSDs
  • Supports PCIe 3.0 x4
  • Supports 10/100/10...
Read More »

AS-T10G3

10GbE and M.2 NVMe SSD Composite PCIe 3.0 Network Card Designed for Expansion and Performance Improvement

  • Uses the Marvell AQC113 10GbE controller
  • Supports two M.2 NVMe SSDs
  • Supports PCIe 3.0 x4
  • Supports 10/100/1000/2500/5000/10000 Ethernet speeds
  • Supports 16K jumbo frames
  • Supports IP, TCP, UDP checksum offloading (checksum offloading), reduce CPU usage
  • Supports VLAN ID tagging and QoS
  • Uses an 8P8C RJ-45 connection for compatibility with common types of networking equipment

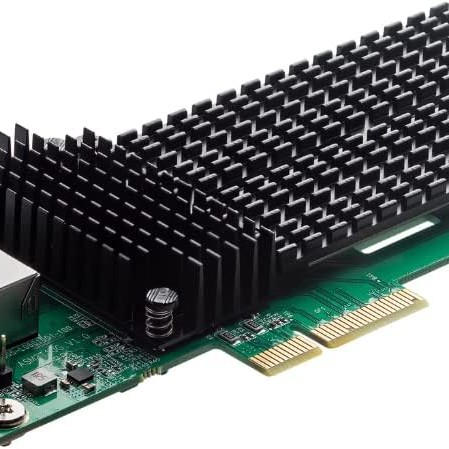

  • Uses heatsinks to keep performance and efficiency high
« Read Less

ASUSTOR AS-T10G3, 10GBE & M.2 NVME SSD NETWORK CARD

Hardware Specifications

  • Specifications:
    • IEEE 802.3an. 10GBase-T Ethernet
    • IEEE 802.3ab 1GBASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Fast Ethernet
    • IEEE 802.3bz NBASE-T
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.3x flow control
    • IEEE 802.1Q Tagged VLAN support
    • IEEE 802.1Qav Audio Video Bridging
    • IEEE 1588 v2 Precision Time Protocol (PTP, Precision Time Protocol)
  • Maximum data transfer rate: 10 Gbps
  • Network operation mode: full duplex
  • Host bus interface: PCIe 3.0 x4
  • Storage interface: NVMe
  • Support size specification: 2280
  • Interface type and quantity: M-key, 2 slots

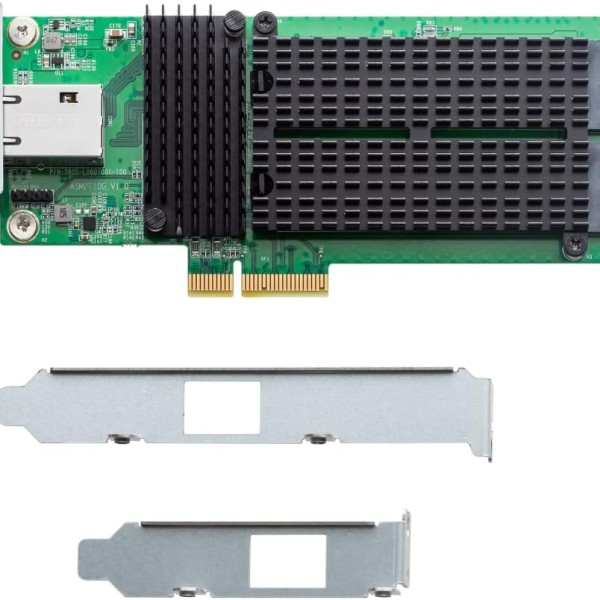

  • Bracket support: Lockerstor-specific bracket preinstalled, full-height and half-height brackets included.
  • Working temperature: 0 – 40°C
  • Storage temperature: -20 – 60°C
  • Relative Humidity: 5% to 95% RH
  • Certifications: FCC, CE, UKCA, BSMI, VCCI, C-Tick, KCC
  • Supported features:
    • Jumbo Frame 16K Bytes
    • IP, TCP, UDP checksum offload
    • Supports 10/100/1000/2500/5000/10000 auto-negotiation.
  • Software requirements:
    • ADM 4.2 or above
  • Hardware requirements: Lockerstor 4 & 6 Gen2, Lockerstor 4RD, RS & 12RD, Lockerstor 12RD Pro & 16RD Pro
  • Product Warranty: 2 years
  • *S3 sleep unsupported with installation of AS-T10G3

Size and Weight

  • Size: 20.6 (H) x 153.1(W) x 68.9(D) mm
  • Weight: 92.6 g
