Spesifikasi:

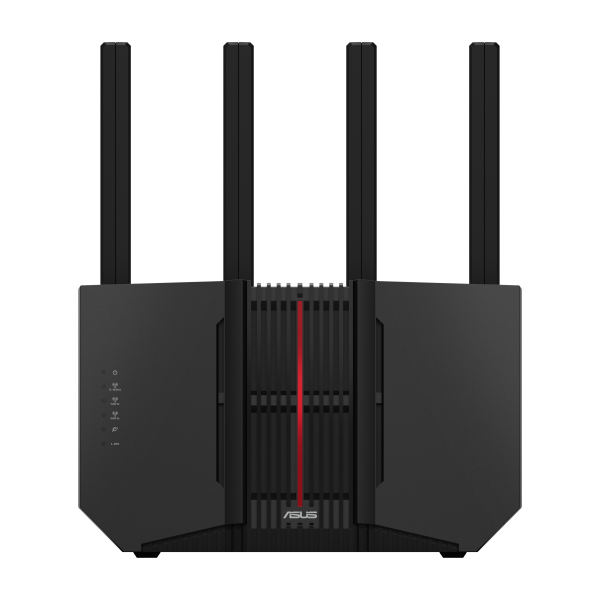

Model : ASUS RT-BE92U
Network Standard
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- WiFi 6E (802.11ax)
- WiFi 7 (802.11be)
- IPv4
- IPv6
Product Segment : BE9700 ultimate BE performance : 1032+2882+5764 Mbps
WiFi Data Rate :
- WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
- WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
- WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
Antenna : External antenna x 4
Transmit / Receive :
- 2.4GHz 3x3
- 5GHz 2x2
- 6GHz 2x2
Processor : 2.0GHz quad-core processor
Memory : 256 MB Flash and 1 GB DDR4 RAM
Boosts Speed :
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
4096-QAM high data rate - 20/40/80/160/320 MHz bandwidth
Operating Frequency :
Operating Mode :
- Wireless Router Mode
- AiMesh Node Mode
- Access Point Mode
- Media Bridge Mode
- Repeater Mode
I/O Ports :
- 1 x 10Gbps for WAN/LAN
- 1 x 2.5Gbps for WAN/LAN
- 3 x 2.5 Gbps for LAN
- USB 3.2 Gen1 x1
Buttons : WPS Button, Reset Button, Power Switch
LED Indicator
- Power x1
- WAN x1
- LAN x1
- 2.4GHz x1
- 5GHz x1
- 6GHz x1
Power Supply :
- AC Input: 110V~240V(50~60Hz)
- DC Output: 12 V with max. 3 A current
Package Content :
- RT-BE92U WiFi 7 Tri-band Router
- wall mount kit
- RJ-45 cable
- Power Adapter
- Quick Start Guide
- Warranty Card
Product Dimensions : 247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch
AiMesh
- AiMesh
• Primary AiMesh Router
• AiMesh Node
Parental Control
- Web & Apps Filters
- Time Scheduling
- Safe Browsing
- Customized Internet Schedule
• Maximum Parental Control Profile : 64
Guest Network
- "The Guest Network provides Internet connection for guests but restricts access to your local network."
- Support Guest Network
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3 - Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal
Security
- AiProtection
- VPN
- WPA/WPA2/WPA3 Personal
- WPA/WPA2/WPA3 Enterprise
- Open System & OWE
- WPS
- Let's Encrypt
- DNS-over-TLS
- SSH
- Security Scan
- Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
- AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
VPN
- Instant Guard
- VPN Client L2TP
- VPN Client Open VPN
- VPN Client PPTP
- VPN Client WireGuard\
- VPN Server IPSec
- VPN Server Open VPN
- VPN Server PPTP
- VPN Server WireGuard
- VPN Fusion
- Support Surfshark
Traffic Control :
- Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32 - Traditional QoS
- Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor - Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
- Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec - Dual WAN
- 3G / 4G LTE dongle
- 4G / 5G Auto Mobile Tethering
- Port forwarding
• Maximum Port Forwarding Rule : 64 - Port triggering
• Maximum Port Triggering Rule : 32 - DMZ
- DDNS
- NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
LAN :
- DHCP Server
- IGMP Snooping
- IPTV
- Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128 - Wake on LAN (WOL)
Wireless :
- MU-MIMO
- UTF-8 SSID
- WiFi MAC Address Filter
• Maximum MAC Filters : 64 - Wireless Scheduler
- Airtime Fairness
- RADIUS Client
- Universal Beamforming
- Explicit Beamforming
USB application
- 4G / 5G Auto Mobile Tethering
- File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4 - Safely Remove Disk
- Download Master
- Media Server
- Time Machine
- Samba Server
- FTP Server
- Shared Folder Privileges
User Interface :
- WEB: ASUSWRT
- APP: ASUS Router APP
Administration :
- Configuration Backup and Restore
- Diagnosis tools
- Feedback System
- System Log
- New Device Connect Notification
- Login Captcha
- Connection Diagnosis
- Auto Firmware Update
